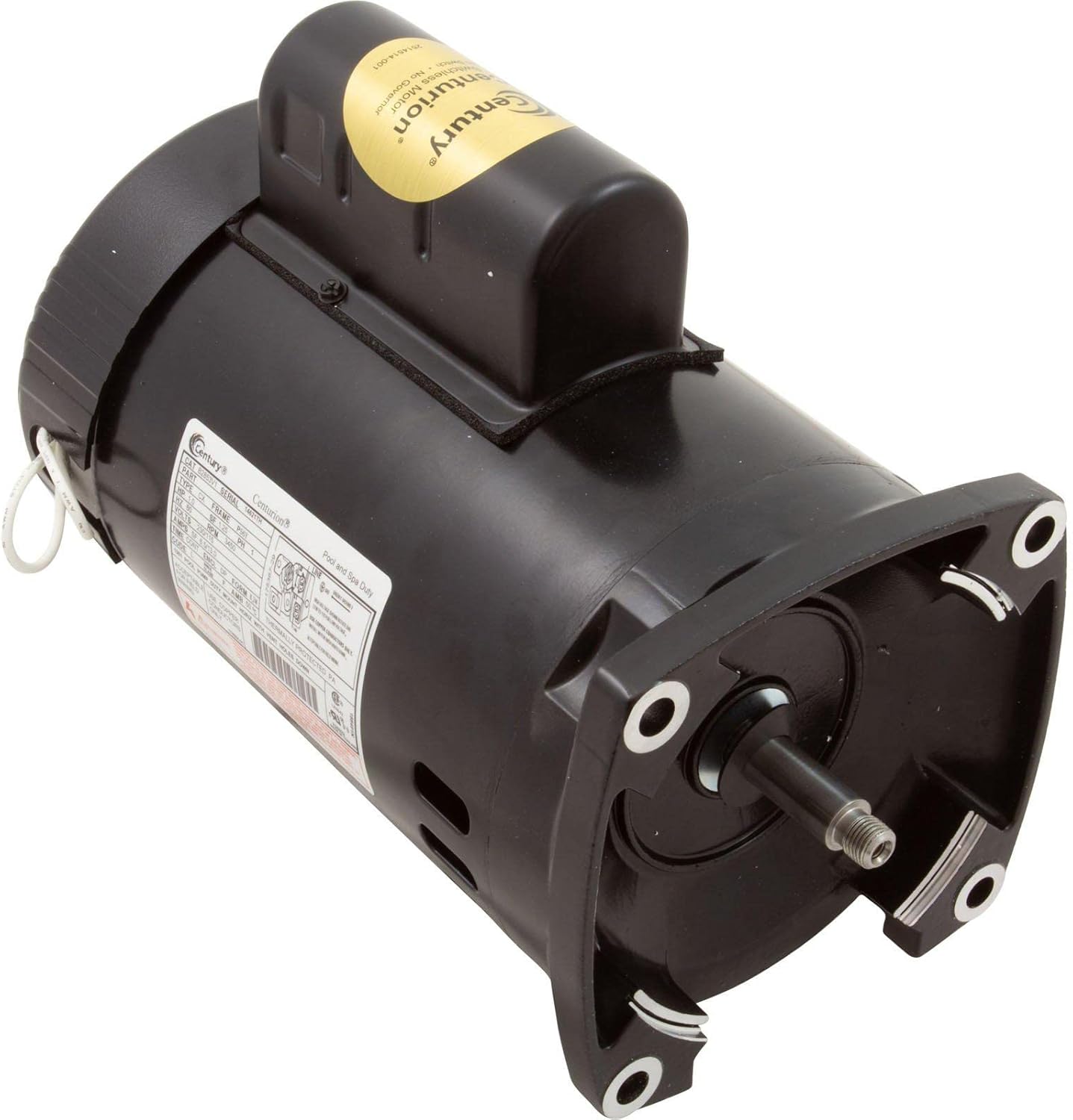

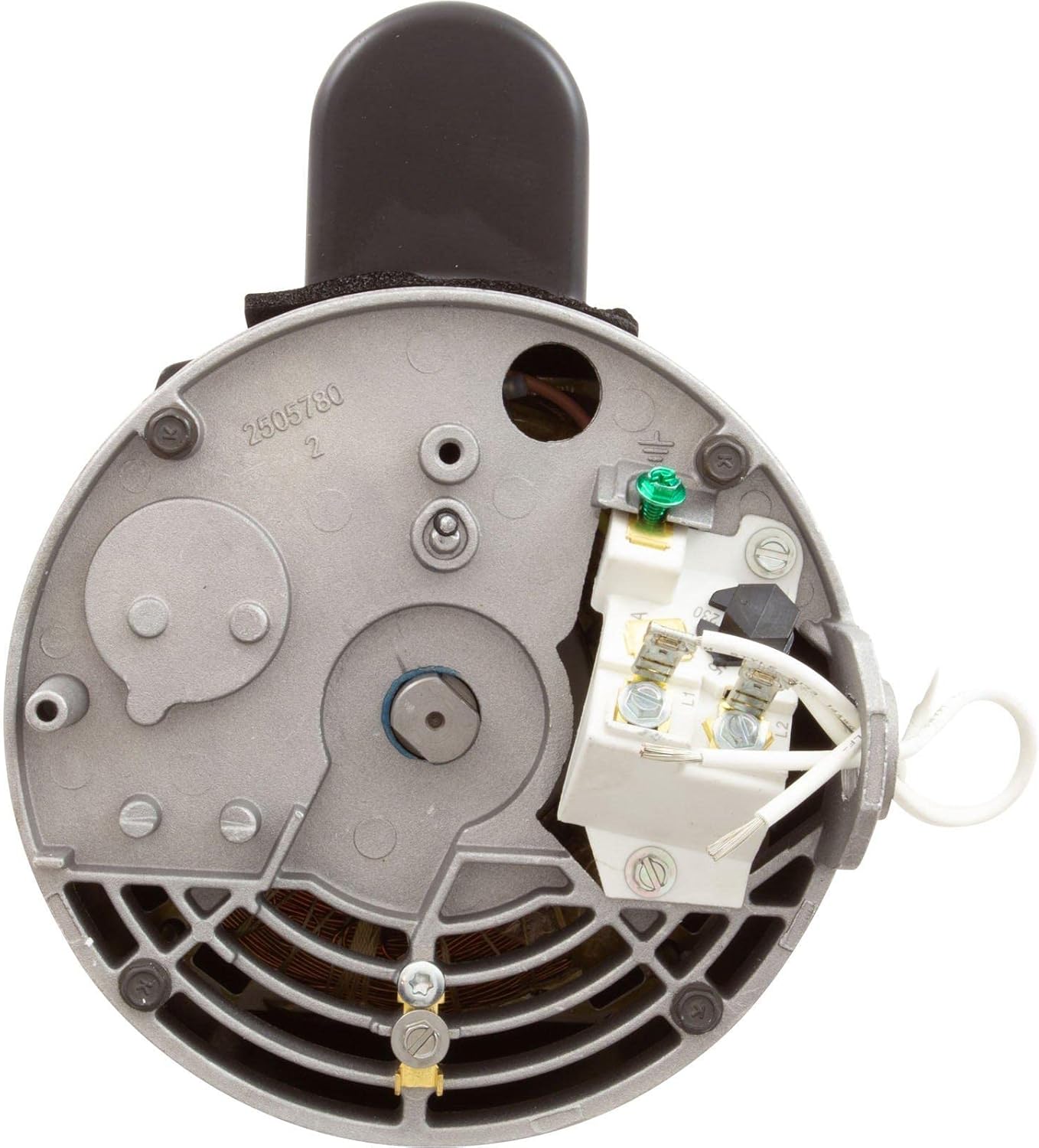

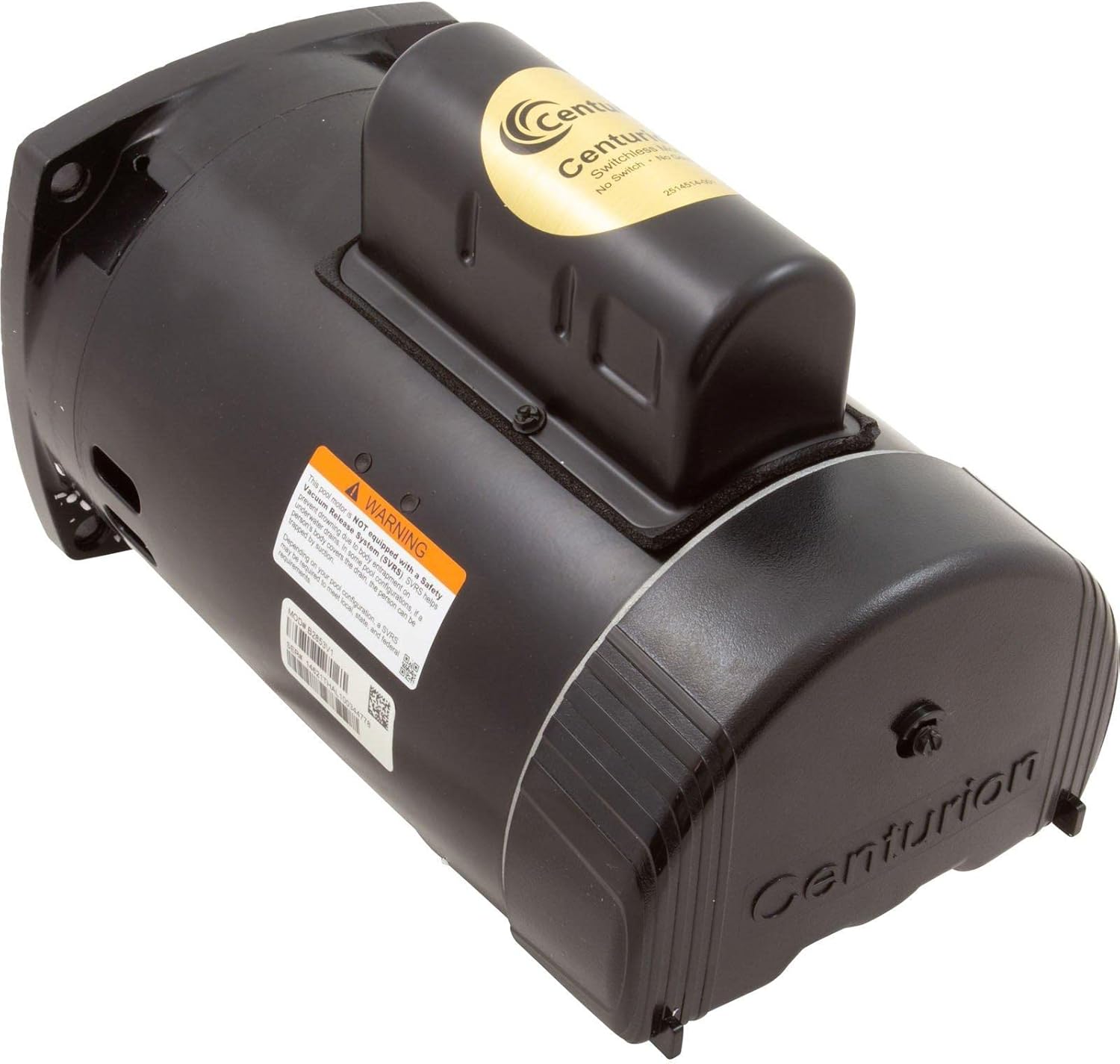

Century Pool Pump Motor 1HP 1-Speed 1 Phase 60Hz 230/115V 56Y Frame | B2853V1

Restore reliable performance to your pool pump with the Century B2853 1 HP Pool Pump Motor, a durable, up-rated replacement motor built for long service life and dependable operation. Manufactured by Century (A.O. Smith), this motor is engineered for smooth, efficient performance and is a trusted solution for replacing worn or failing pool pump motors.

Designed with a 56Y frame, threaded stainless steel shaft, and single-speed 3450 RPM operation, the B2853 offers direct compatibility with many popular inground pool pumps. Its permanent split capacitor (PSC) design, sealed ball bearings, and automatic thermal overload protection help ensure consistent operation and added motor protection.

Why Choose the Century B2853 Motor?

• Genuine Century replacement motor (Model B2853)

• 1 HP up-rated with a 1.25 service factor (1.25 total HP)

• Single-speed performance at 3450 RPM

• Dual voltage 115/230V for flexible installation

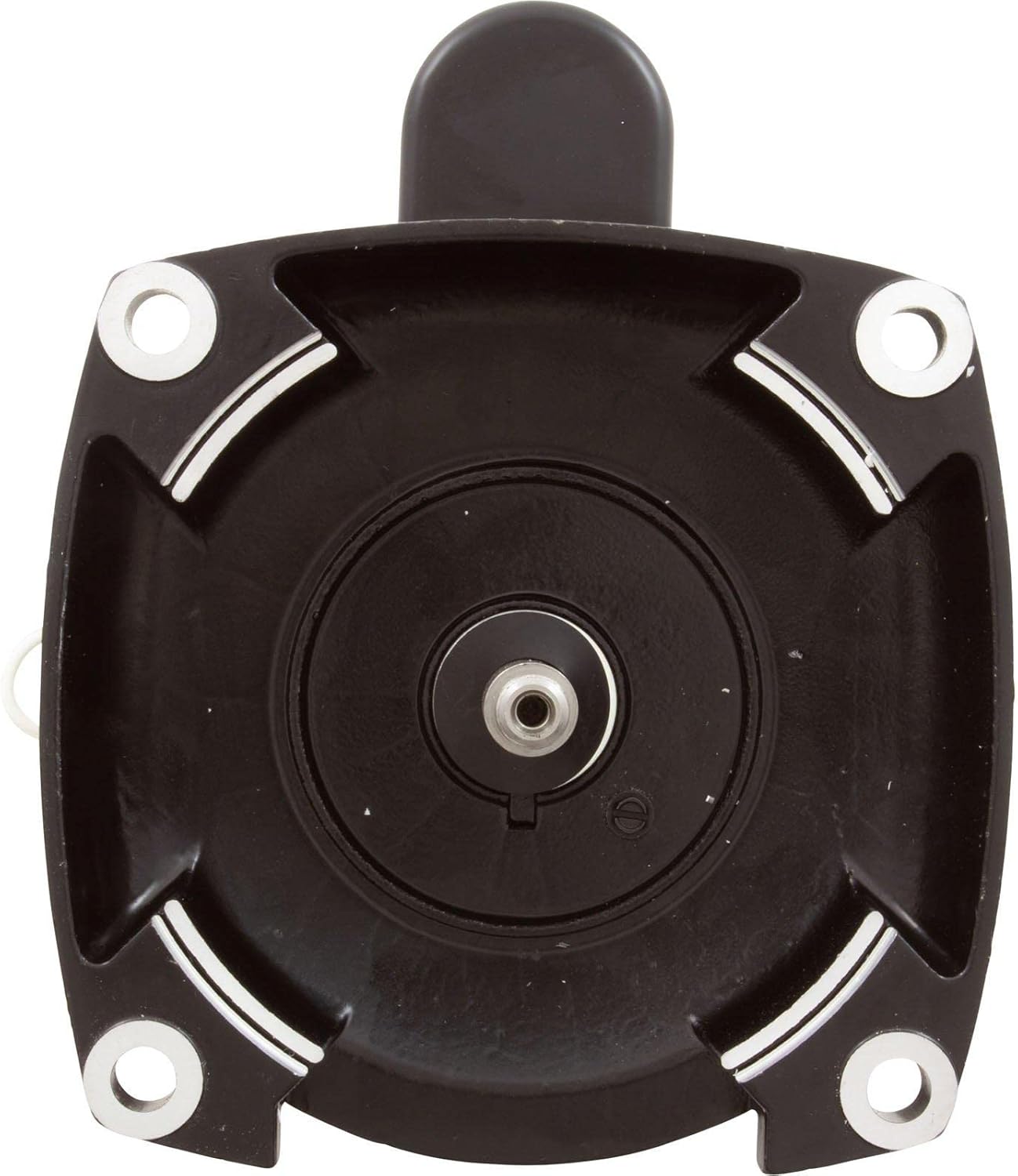

• 56Y frame with round flange mounting

• Threaded stainless steel shaft for easy, direct mounting

• Open Drip Proof (ODP) enclosure for effective cooling

• Switchless design with sealed ball bearings for long life

Key Features & Build Quality

• Permanent Split Capacitor for efficient operation

• Sealed ball bearings for quiet, reliable performance

• Thermally protected with auto overload shutoff

• Rated for 50°C ambient temperature

• UL 1081 recognized design

Common Pump Compatibility

• Pentair: WhisperFlo, SuperFlo, Challenger, Pinnacle

• Sta-Rite: Max-E-Glas, Max-E-Glas II, Dura-Glas, Dura-Glas II, Dyna-Glas, Dyna-Max

• Jandy: PHPM / PHPF Series (2006–Current), SHPF / SHPM Series (2008–Current)

• Select models from Pac-Fab and American Products

Important Notes

• Not compliant with California or New York Title 20 efficiency standards

• Always confirm motor HP, frame size, and mounting style before ordering

• Replace the shaft seal during motor installation to prevent leaks

• Verify proper wiring for 115V or 230V prior to startup

• Disconnect power before servicing

If you’re looking for a dependable, cost-effective replacement motor that delivers proven performance, the Century B2853 1 HP Pool Pump Motor is a trusted choice for keeping your pool system running smoothly all season long.

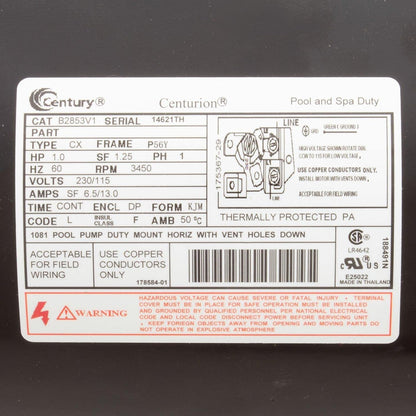

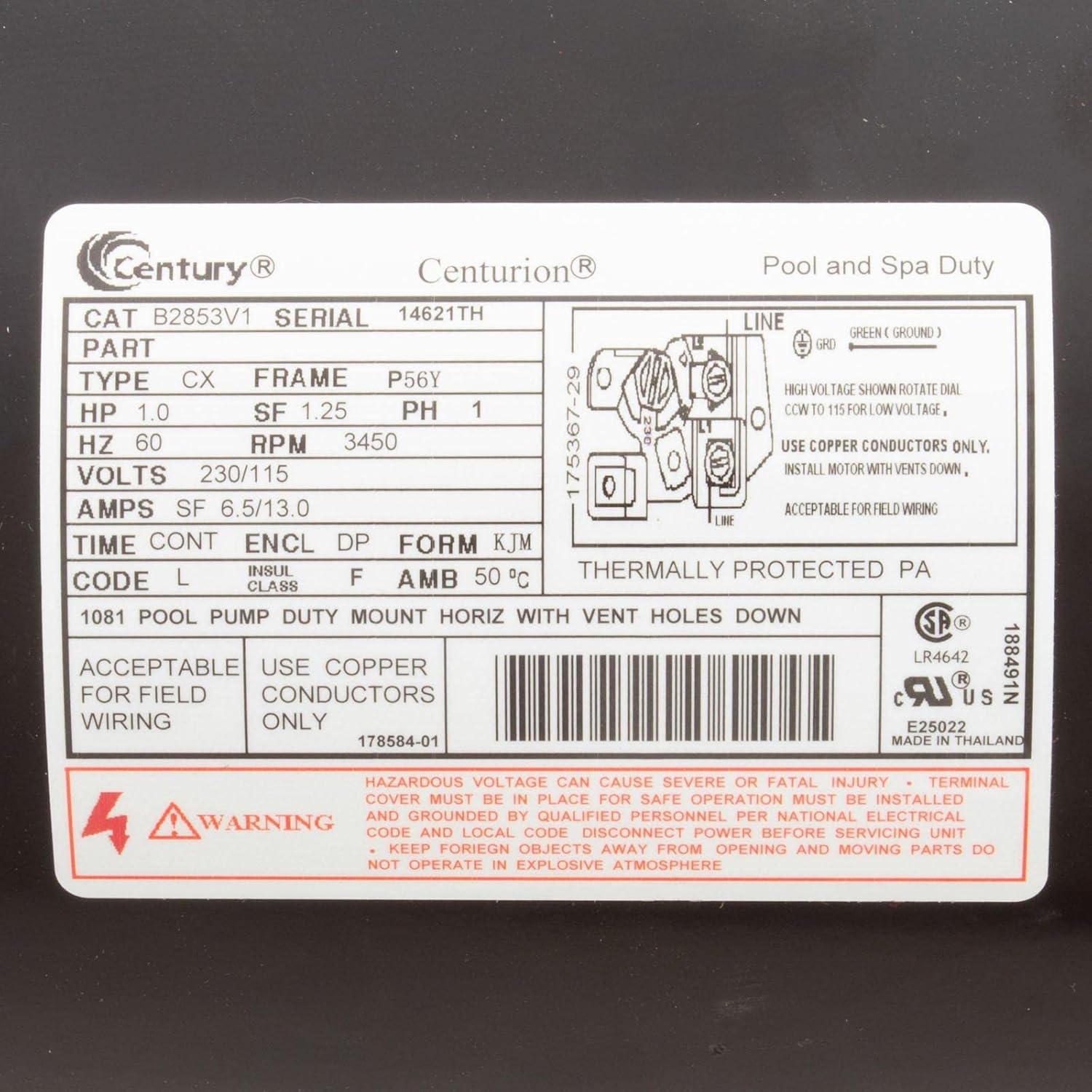

UPC: 786674071644

Horsepower: 1.0 HP (Up-Rated)

Total HP: 1.25

Speed: Single Speed

RPM: 3450

Voltage: 115/230V

Amps: 13.2A @115V / 6.6A @230V

Frame: 56Y

Phase: Single

Enclosure: Open Drip Proof

Shaft: Threaded stainless steel
