Century Pool Pump Motor, Threaded Shaft, 1.5HP 56J | UST1152

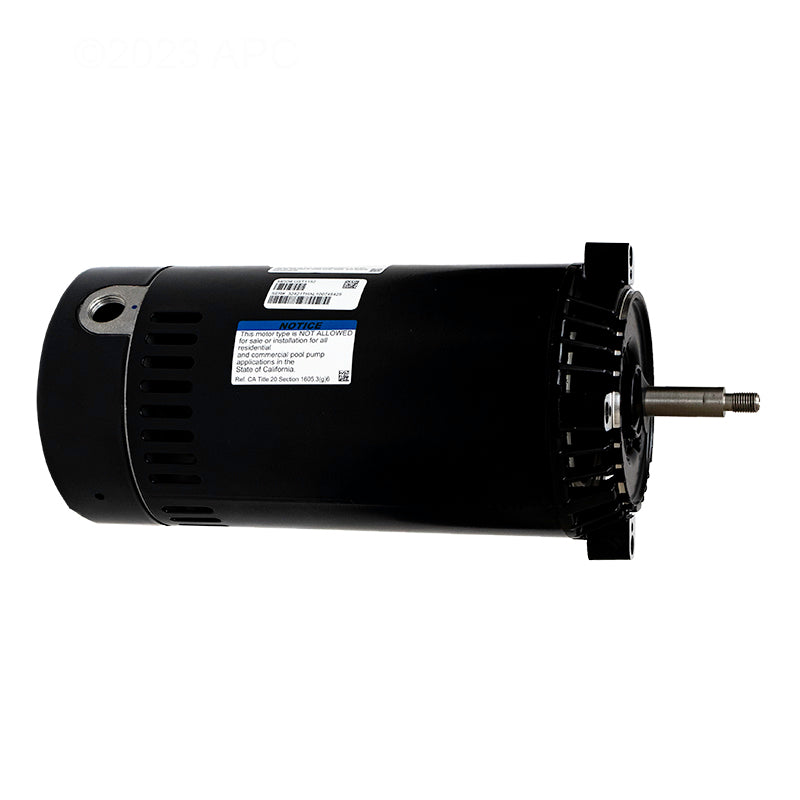

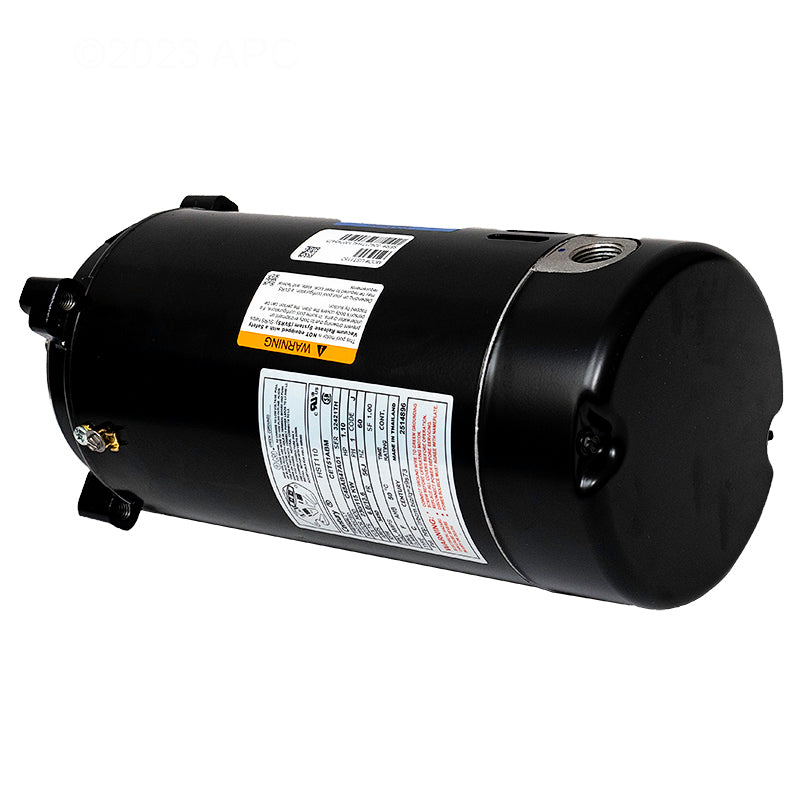

Need a dependable motor replacement? The Century A.O. Smith UST1152 is your go-to solution when your current pump motor calls it quits. Built to replace motors for popular pumps like the Hayward Super Pump, Super II, Max-Flo, Northstar, and Jacuzzi Magnum, this rugged motor is a top-tier choice trusted by pool pros and DIYers alike.

Why Choose the UST1152?

• Reliable Replacement for Multiple Brands: Works with a wide range of pump models including the Hayward Super Pump SP2610X15, Super II SP3010X15, Max-Flo SP2810X15, Jacuzzi Magnum 15UMF-S, and more.

• Strong & Efficient: 1.5 HP, single speed, dual voltage (115/230V) motor with a max RPM of 3450.

• Built to Last: Features a corrosion-resistant 303 stainless steel shaft, sealed ball bearings, and an open drip-proof (ODP) design for dependable cooling and long-lasting operation.

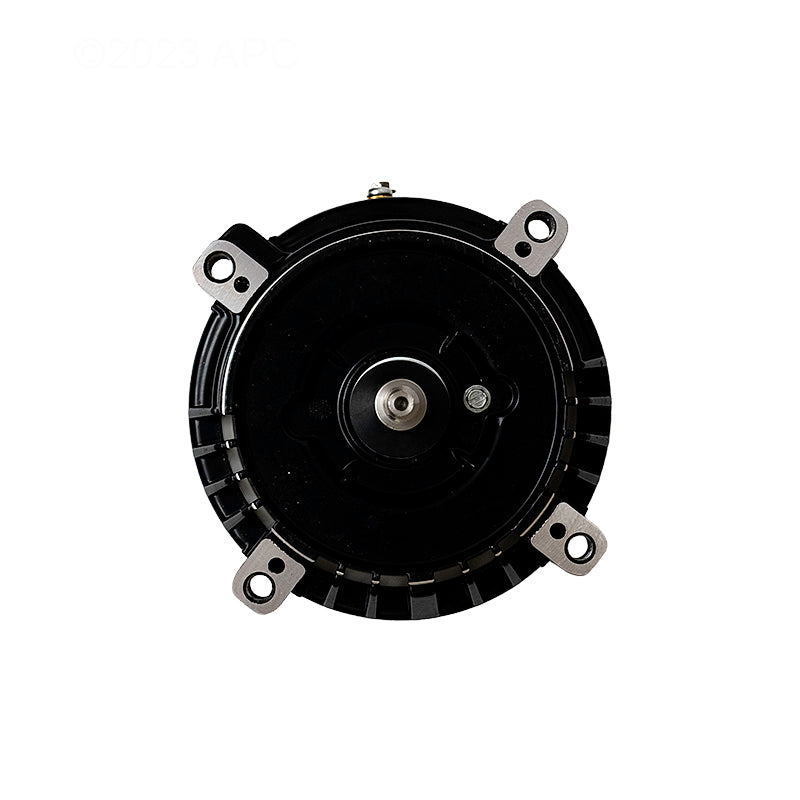

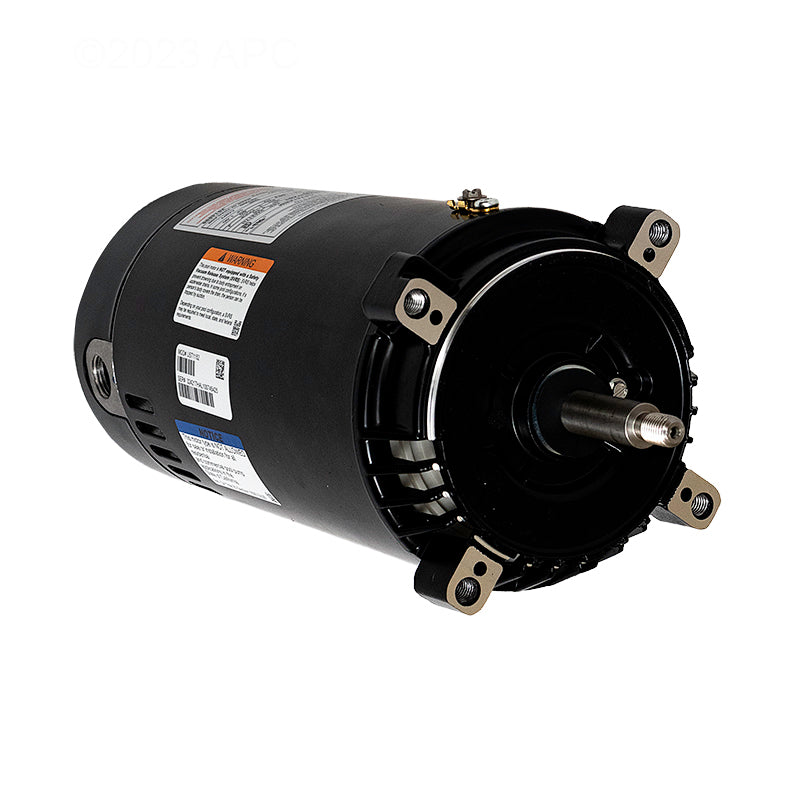

• Easy Installation: Threaded shaft and C-face (56J frame) mounting for direct, hassle-free setup.

• Smart Protection: Equipped with an auto-overload protector and a sealed switch design to guard against damage.

Important Note: Always replace the pump seal when installing a new motor. The seal is based on the pump model—not the motor itself.

Please Note:
This motor is not compliant with California or New York Title 20 energy efficiency regulations.

UPC: 786674031792

Specs at a Glance:

Horsepower: 1.5 HP (Up-Rated)

Voltage: 115V/230V

Amps: 18.6A at 115V / 9.3A at 230V

Speed: Single Speed (3450 RPM)

Frame: 56J (C-Flange)

Phase: Single

Shaft Type: Threaded

Rotation: Counterclockwise (Pump End)

Service Factor: 1.00 - 1.25

Ambient Temp: 50°C

Design: 1081 Pool/Spa Rated
