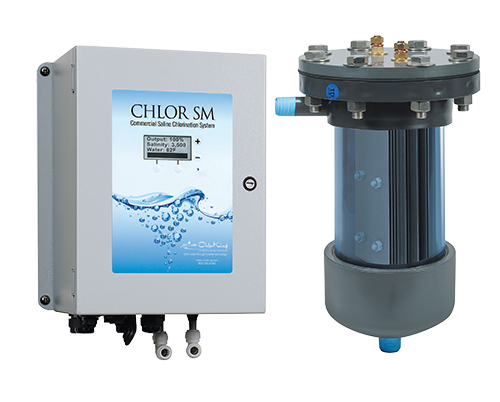

ChlorKing® CHLOR 15SM Salt Chlorinator

Ultra-High Output Salt Chlorination for Demanding Commercial Pool Systems

The ChlorKing® CHLOR 15SM is engineered for the most demanding aquatic environments. Designed for large commercial pools, this system delivers up to 17 lbs of chlorine per day using a mild saline solution (3,500–5,000 ppm) — eliminating the hazards and costs of traditional chlorine storage and handling.

Built with ChlorKing’s patented single-cell technology, the CHLOR 15SM features a self-cleaning 15,000-hour electrode, digital salinity monitoring, and a water-cooled industrial-grade power supply — all in a compact, easy-to-install form.

Key Features

• 17 lbs/day Chlorine Output: Ideal for high-capacity, high-usage pools

• Patented Single-Cell Design: Simple installation and lower maintenance

• Self-Cleaning Cell (Reverse Polarity): Prolongs lifespan, reduces service downtime

• Bypass Installation: 1” plumbing, only 20 GPM required

• Toroidal Digital Salt Display: No calibration needed — just accurate monitoring

• Water-Cooled Industrial Power Supply: Built for heavy-duty continuous use

• Clear Reaction Chamber: Visually inspect chlorine generation

• Proudly U.S. Made: Engineered, manufactured, and supported in the USA

Technical Specifications

• Chlorine Output: 17 lbs / 24 hours

• Salt Concentration: 3,500 – 5,000 ppm

• Flow Rate: 20 GPM (required), 50 PSI (max)

• Electrical Requirements:

  • Max Amps: 15 @ 208V

  • Voltage: 208–240V, 50/60 Hz, single-phase

  • GFCI Breaker: 30 amp

• Temperature Range:

  • Air: 35°F – 115°F (2°C – 46°C)

  • Water: 59°F – 104°F (15°C – 40°C)

• Cell Lifespan: 15,000 hours

• Certifications: NSF-50, UL-1081, CSA-C22.2

• Plumbing: 1” inlet/outlet (bypass install)

• Dimensions:

  • Power Supply: 20”W × 20”H

  • Cell Housing: 11”W × 27”H

Installation & Compatibility

Wall-mounted with 1” plumbing, the CHLOR 15SM integrates into your existing system with ease. Bonding and grounding lugs are included to meet all safety standards.
