Hayward Bypass Valve Kit | HAXBPK1932

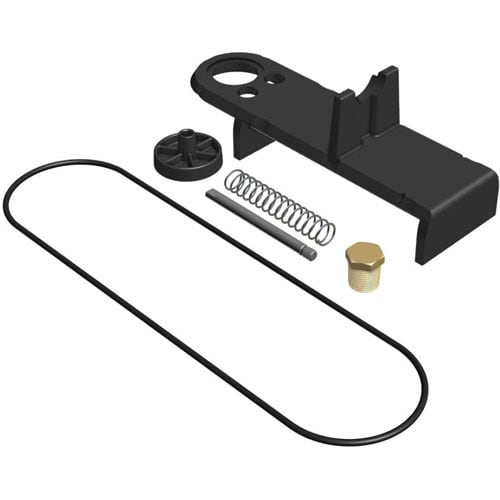

This Is The Bypass Kit Used In The Hayward H Series, Ed1, Ed2 Heaters Made After 10-28-2000 Includes: Black Plastic Baffle, Round Plastic Bypass End, Stainless Bypass Shaft And Plug, Bypass Spring, And The Haxhor1930 Header O-Ring Material: Baffle And End: Black Plastic Bypass: Stainless Steel The Bypass Baffle Is Basically Rectangular With A Rounded End The Rounded End Has A Single 1-3/8" Diameter Hole For The Flow Control Thermostat There Are 2 - 5/8" Diameter Holes Next To This Hole Length: 10" Width: 2-7/8 Total Height: 3-3/8 Markings: "0101421101" Is Molded Into The Bottom Special Note - The Bypass Kit For Earlier Heaters Uses Brass Fittings And The Baffle Is Shorter And Has Only 2 Holes Total
