Hayward Pro Series Sand Filter Heavy Duty Clamp | SX310N

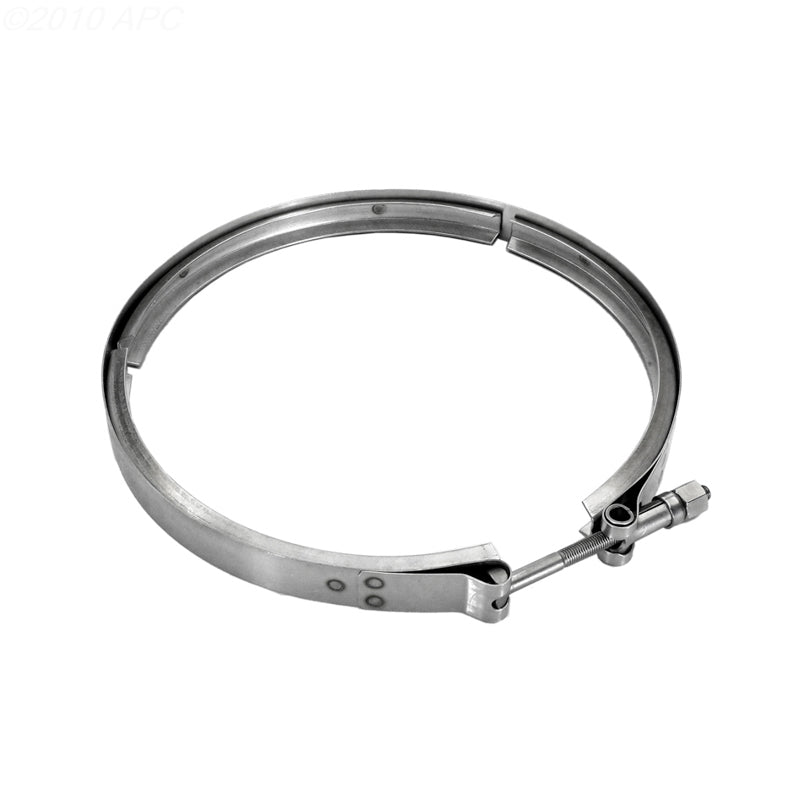

This is a complete one piece stainless steel clamp used to attach the valve to the filter on a number of hayward top mount filters this clamp will also work very well as a replacement for 2 of the muskin obsolete clamps this will replace the muskin 48030 stainless steel clamp and the muskin 72113, 2 piece plastic clamp this assembly includes the one piece clamp, a captive t-bolt which is 3-1/2" long, a nut to tighten the clamp, and a rubber cap to protect the end of the bolt outside diameter: 8" (with the clamp ends touching) top to bottom: 3/4" the clamp is about 5/16" thick from inside to outside
