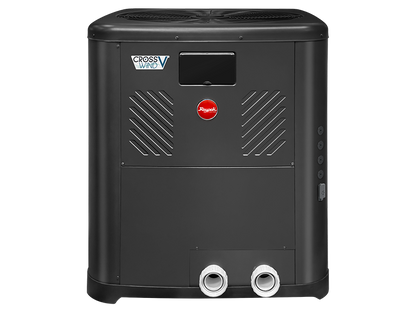

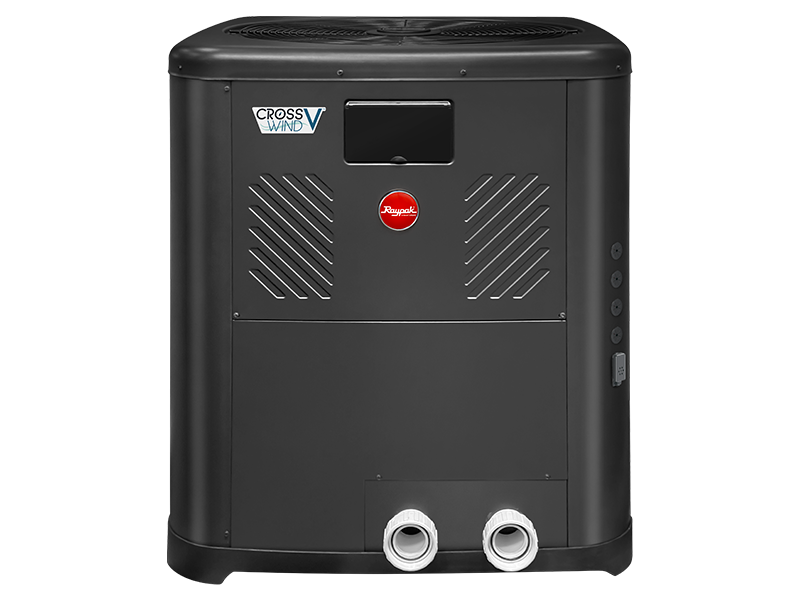

Raypak Crosswind V 6550 Heat/Cool Pump – 115,000 BTU |TWPH6550EHC08

Upgrade your pool heating and cooling performance with the Raypak Crosswind V 6550 Heat/Cool Pump, a high-efficiency electric heat pump engineered for reliable, energy-conscious operation. Designed for residential pools and spas, this 115,000 BTU unit delivers consistent water temperatures with both heating and cooling capabilities for year-round comfort.

Built with Raypak’s vertical discharge platform, the Crosswind V 6550 combines intelligent controls, durable construction, and modern connectivity to provide a versatile temperature management solution.

Key Features & Benefits:

Sleek, modern profile designed for backyard aesthetics

Smaller footprint and lighter weight for easier installation

Fits standard equipment pads

Industry-standard 2" water connections

Front-access plumbing for improved accessibility

Raymote® mobile app enables remote temperature control and system monitoring

Built-in automation capable of controlling:

2 actuators
3 auxiliary devices
1 pump

Heat and cool functionality for extended seasonal use and precise temperature control

Technical Specifications

Technical Specifications

Model: TWPH6560EHT01

Series: Crosswind V (Vertical Discharge)

Input Rate: 115 MBTU/h

Energy Type: Heat Pump

Voltage: 208–230V, Single Phase

COP: Up to 6.0

Max Flow Rate: 60 GPM

UPC: 020352852805

Key Features

Heat and Cool in One Unit. The Deluxe designation means this unit goes beyond heating. Cool Mode lets you maintain a steady, refreshing water temperature on hot days. Auto Mode automatically heats or chills to your target setpoint. The

Plunge setting can drive water temperatures as low as 44°F, making this unit capable of serving dedicated cold plunge applications as well.

5-Turn Spiral Titanium Heat Exchanger. Titanium is the right material for pool water. It resists the corrosive effects of chlorine, salt, and imbalanced chemistry that would degrade a copper exchanger over time. The spiral tube geometry improves heat transfer efficiency and reduces scale buildup.

Scroll Compressor. Quieter and more efficient than piston-type compressors, and notably more durable over time. Scroll compressors are the industry standard choice for premium heat pump applications.

Powder-Coated Steel Cabinet. More durable than the plastic cabinets found on lower-tier units. The louvered design also protects the evaporator coil from hail, debris, and weather.

Raymote Wi-Fi and App Control. Monitor and adjust your pool from anywhere. The app also delivers real-time service alerts directly to both homeowners and service technicians, which cuts diagnostic time during service calls.

Integrated Automation. Controls up to six devices out of the box: two actuators, three auxiliaries, and one pump. Variable speed pump control and dedicated valve actuator connections are included. No external relays required.

Built for Service. The control J-box removes in minutes with four screws. The extended control harness gives technicians access to internal components without contorting around the cabinet. Front-panel water connections mean no need to work behind the unit.

External Bypass Assembly Included. Automatically adjusts to hydraulic changes during operation, improving heat transfer efficiency and protecting the unit when flow conditions vary. Particularly important for installs running single-speed pumps or flow rates near the 60 GPM maximum.
