Raypak Tube Bundle 335 Polymer Kit | 006710F

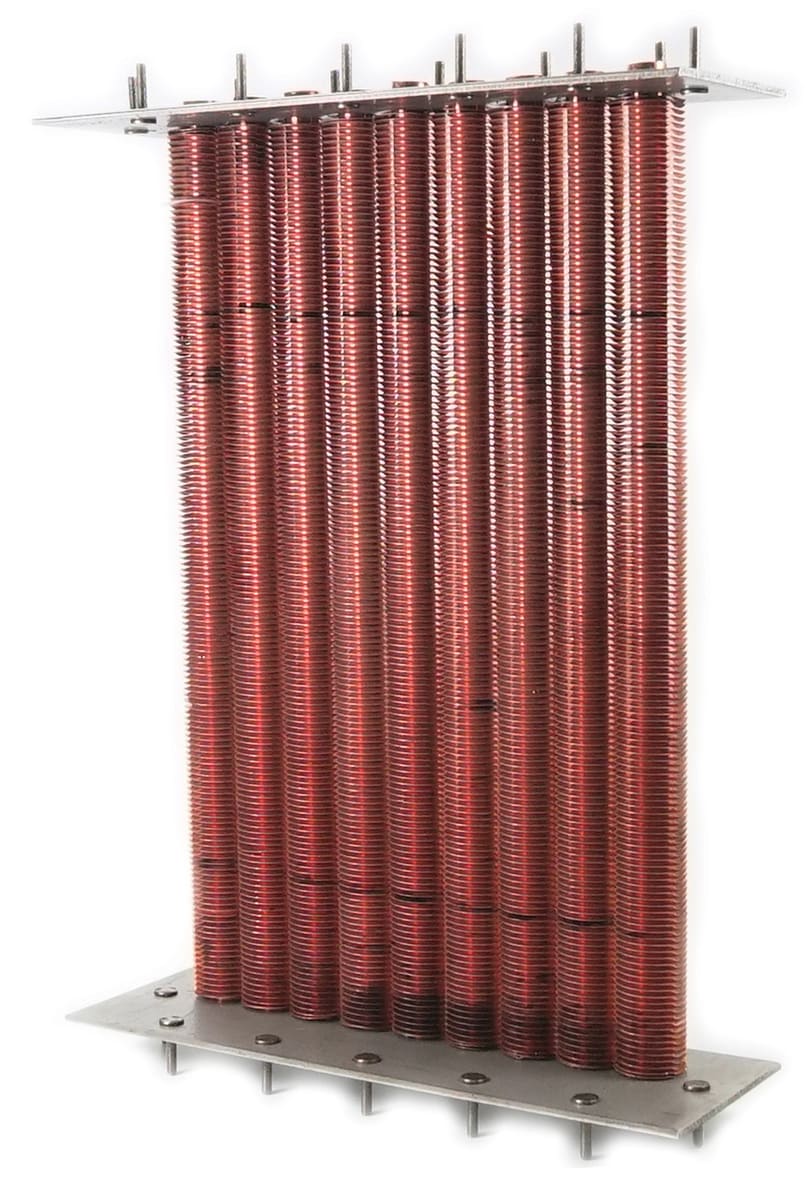

This is the tube bundle used in the raypak P-R335A & B heaters this is the version with plastic front and rear headers number of tubes: 9 length: 20-5/16" (length from outside of endplate to outside of endplate) height): 5" (end plate height) width: 15-3/4" (measured on the endplate - basically this is how long the endplate is) the endplates on this version are stainless steel with 12 threaded studs attached to the outside of each endplate (the length shown does not include these studs) markings: no markings items included with the tube bundle (2) 006712F bolt kits (each kit will do one header) (1) 006713F header o-ring kit (2 - header o-rings) (1) baffle kit (8 baffles) (2) refractory retainer assemblies.
