Description

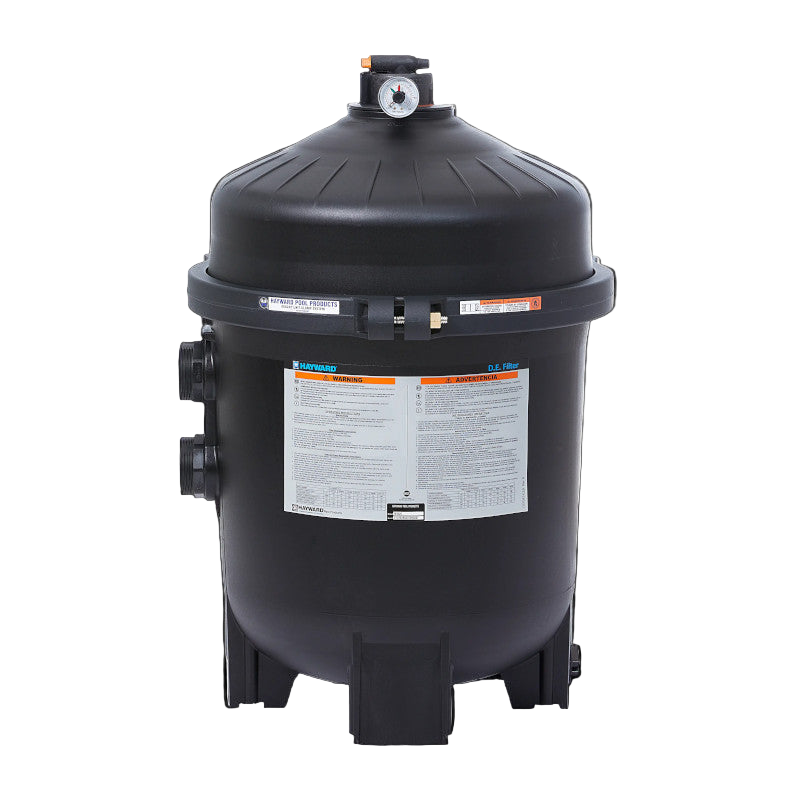

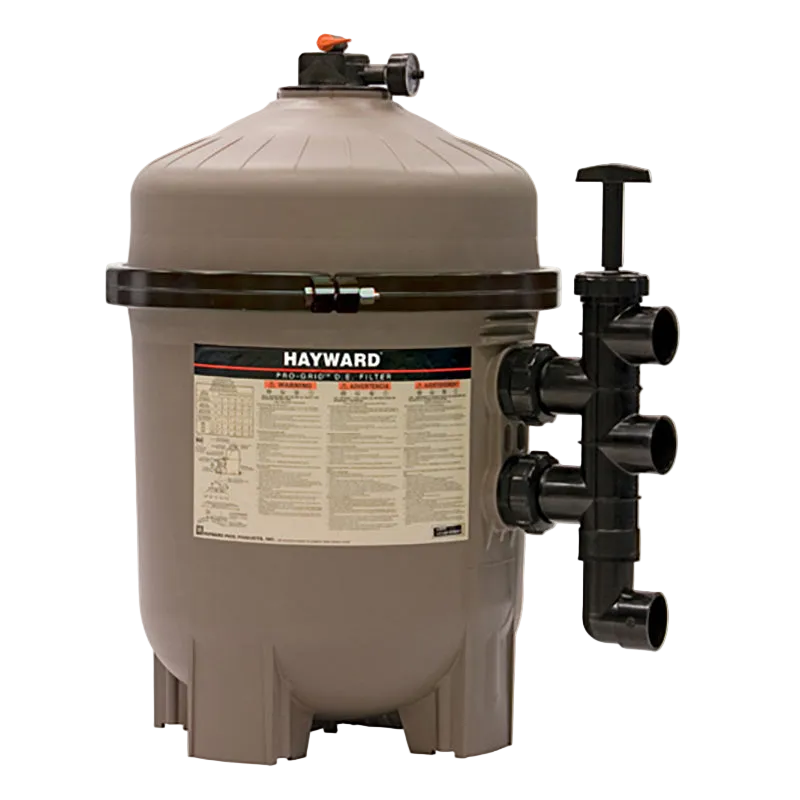

ProGrid vertical grid D.E. filters provide superior water clarity, efficient flow and large cleaning capacity for pools and spas of all types and sizes. ProGrid combines high-technology features and “service-ease” design for an unparalleled filtration value for both new pool and aftermarket installations.
Applications
• In-ground pools
• In-ground spas or in-ground pool/spa
combinations
Features
• High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of
the lever.
• Filter tanks made from durable glass reinforced copolymer to meet the demands of the toughest applications and environmental conditions, including in-floor cleaning systems
• Self-aligned tank top and bottom make access to servicing the grid elements fast and simple.
• Heavy-duty, tamper-proof, one piece flange clamp securely fastens tank top and bottom. Allows quick access to all internal components without disturbing piping or connections.
• High impact grid elements designed for up-flow filtration and top-down backwashing for
maximum efficiency
• Integral lift handles and uniform low-profile base make removal of grid nest fast and simple.
• Inlet diffuser elbow distributes flow of unfiltered water evenly to all filter elements and provides even distribution of D.E. to grids.
• Convenient valve and plumbing options allow for customized control
• 2" full-flow internal piping and plumbing for less resistance to flow and maximum performance.
• 72 ft.2 filter allows for both commercial and large residential applications and years of non-corrosive, trouble-free performance.
Product Specifications
| Manufacturer Sku | W3DE3620 |
| Effective Filtration Area | 36 Sq. Ft. |
| Media Type | Diatamateous Earth |
| D. E. Required | 4.5 lbs |
| Weight | 65 LBS. |
| Dimensions Width | 34.5" |
| Dimensions Height | 23" |
| Public Design Flow Rate | 72 GPM |
| Plumbing Size | 2" |
| Parts Diagram | Link |
